Tubular Level Indicator Gauge

Tubular Level Indicator Gauge

Locus Tubular Level Indicator Gauge is designed for continuous liquid level monitoring in tanks, vessels, and industrial equipment. The gauge consists of a high-quality borosilicate glass tube enclosed within a metal frame, ensuring durability and clear visibility.

Brand :- Locus
Material :- Borosilicate Glass, Stainless Steel, Brass, Mild Steel
Application :- Liquid Level Measurement
Pressure Range :- Up to 10 Bar
Temperature Range :- -40°C to 250°C

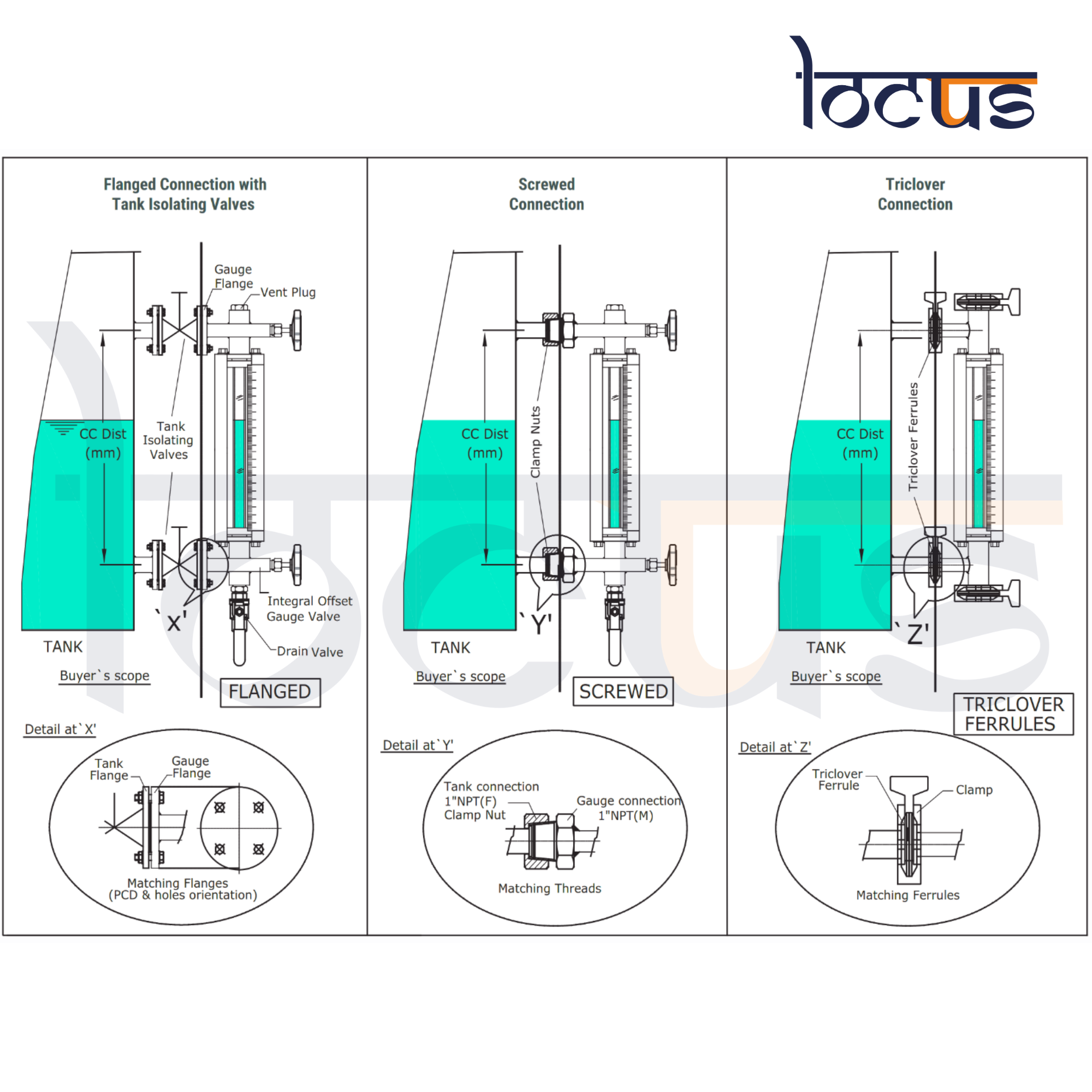

Connection Type :- Flanged, Screwed, Welded
Mounting :- Side/Front Mounted
Glass Tube Protection :- Polycarbonate, Metal Shield
Visibility :- 360-degree

Description

1. Description

Locus Tubular Level Indicator Gauge is designed for continuous liquid level monitoring in tanks, vessels, and industrial equipment. The gauge consists of a high-quality borosilicate glass tube enclosed within a metal frame, ensuring durability and clear visibility. It is ideal for chemical, pharmaceutical, food processing, and water treatment industries.

2. Specification

Glass Tube: Borosilicate / Toughened Glass
End Connections: Flanged / Screwed / Welded
Sealing Material: PTFE / Neoprene / EPDM
Operating Pressure: Up to 10 Bar
Temperature Range: -40°C to 250°C
Standard Lengths: 300mm – 1500mm (Customizable)

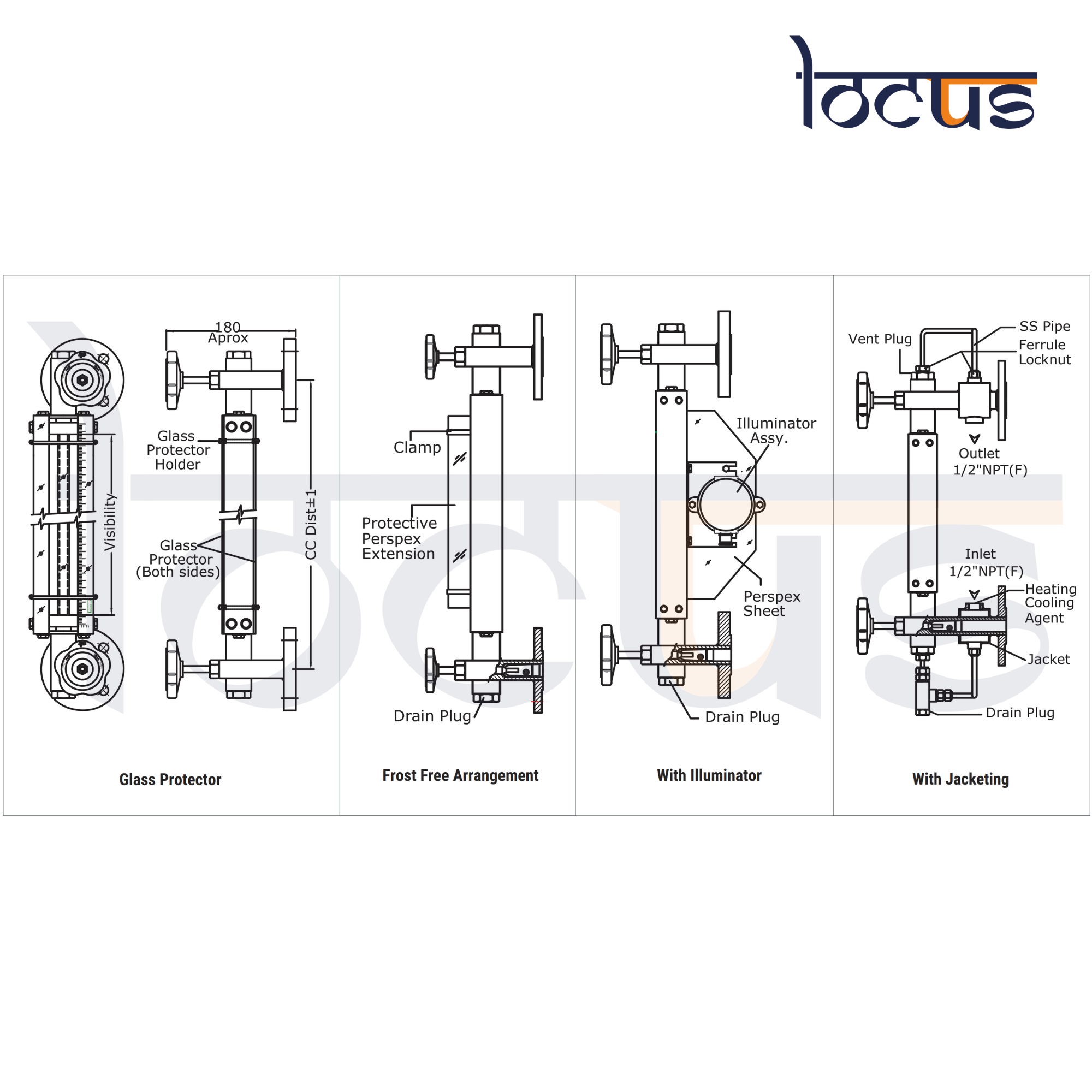

Gauge Protection: Polycarbonate / Metal Shield
Mounting Type: Side / Front Mounted

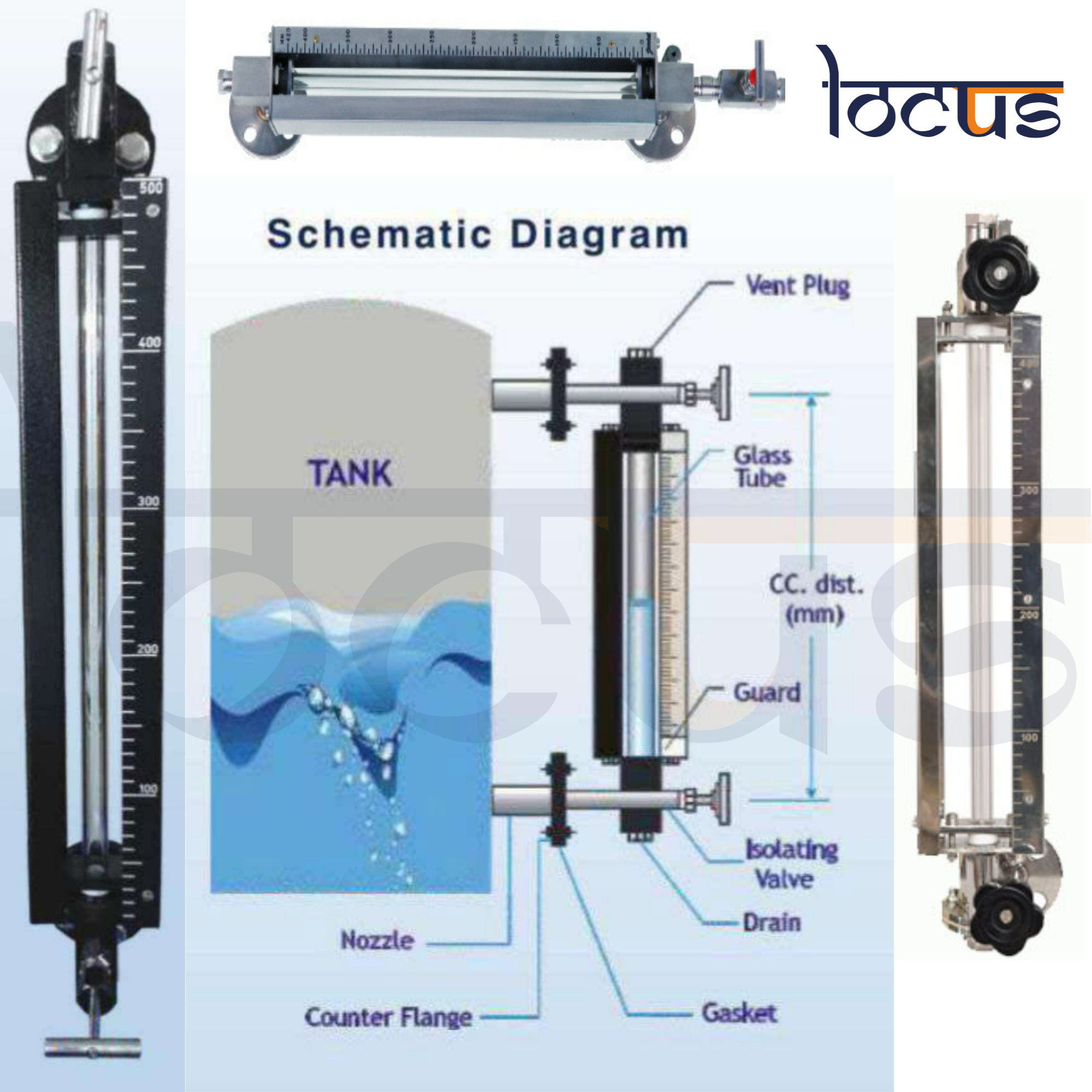

3. Working

The gauge works based on the principle of hydrostatic pressure. The liquid inside the tank maintains the same level inside the glass tube due to the equalization of pressure. The operator can visually inspect the liquid level, ensuring accurate and real-time monitoring.

4. Principle

Communicating Vessels Principle: The level inside the glass tube matches the level inside the tank because of the open connection.
Pascal’s Law: The pressure at a given depth is the same in all directions, allowing the liquid level to remain stable.

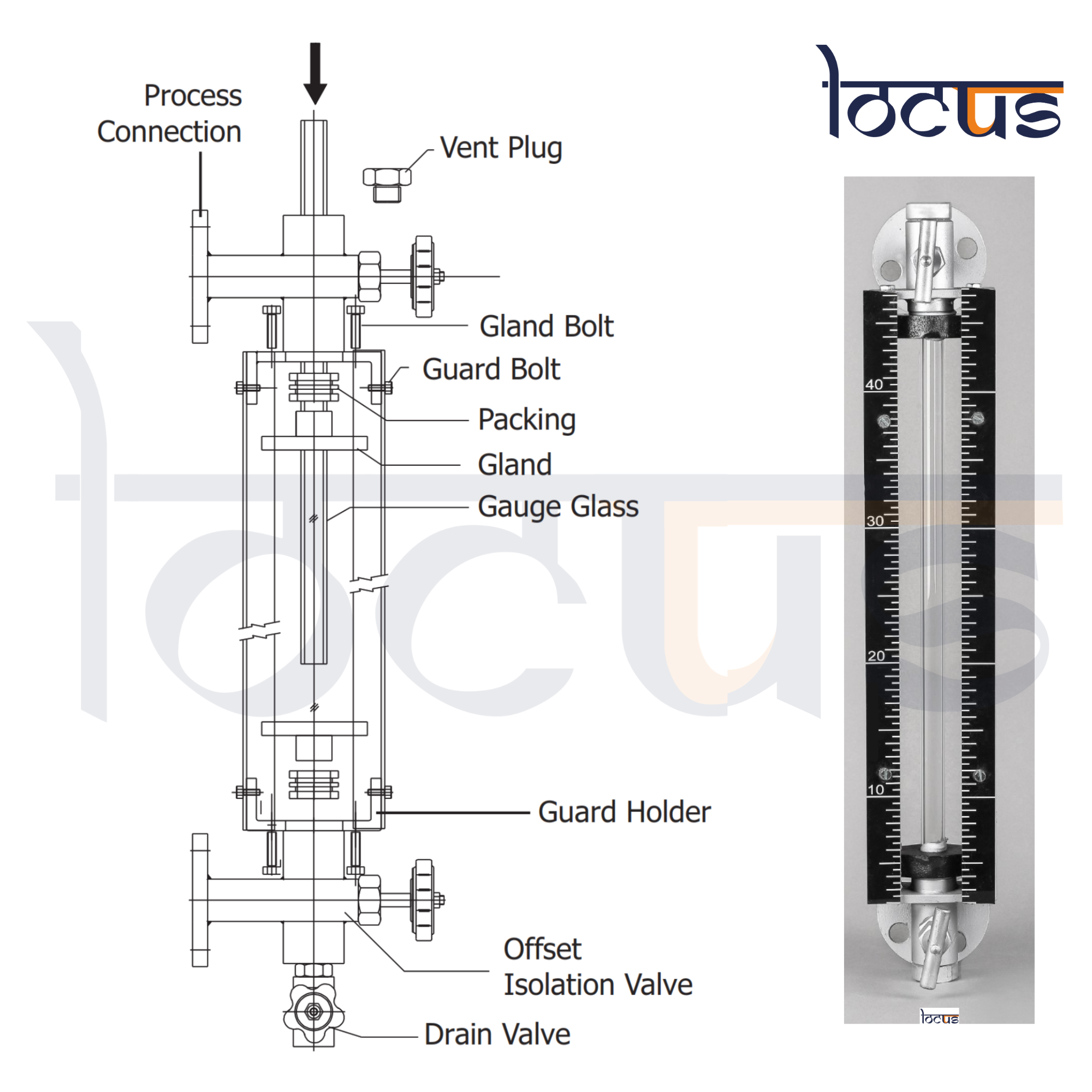

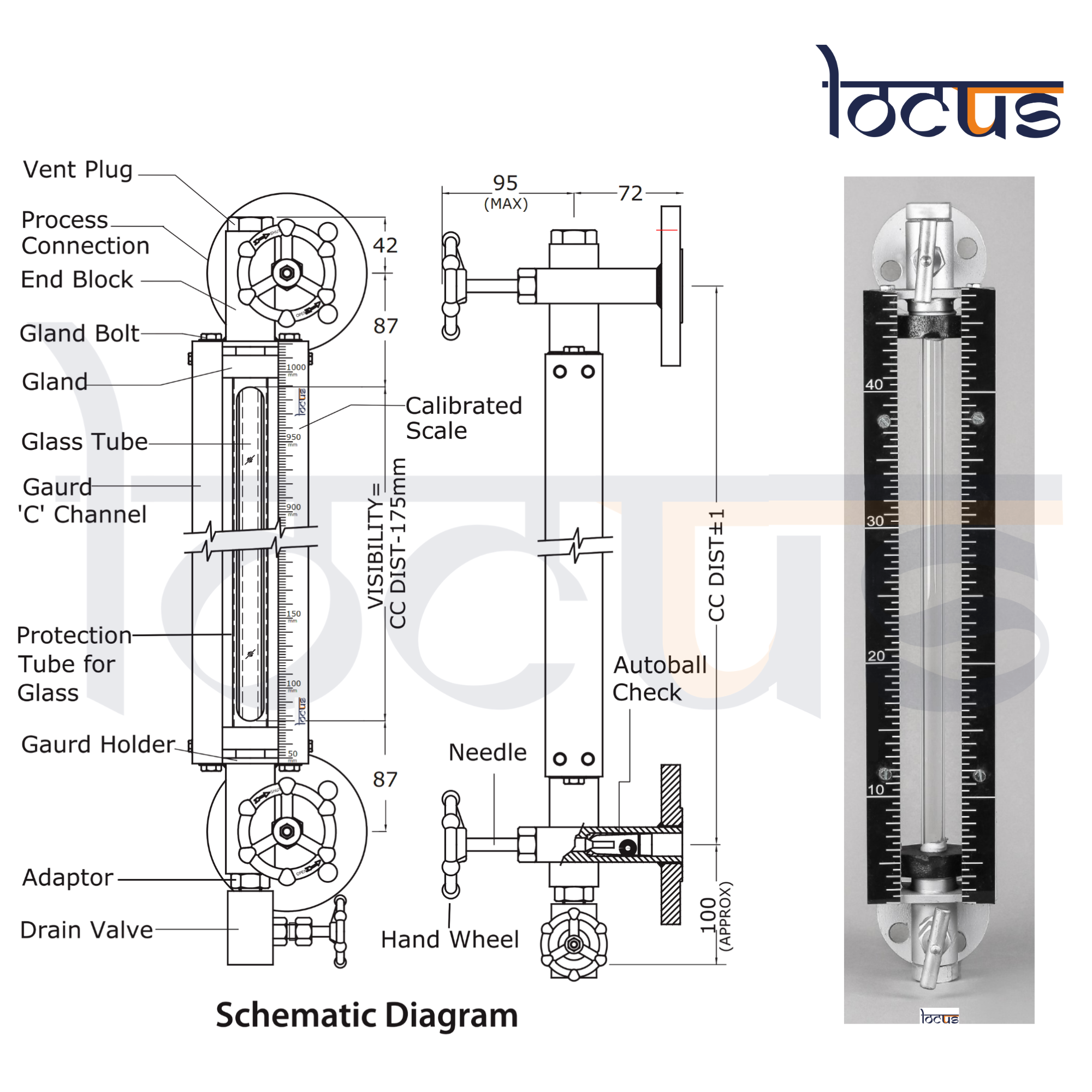

5. Assembly

The Tubular Level Indicator Gauge consists of:

1. Glass Tube (Borosilicate)
2. End Fittings (Brass / Stainless Steel)
3. Valves (Drain and Vent)
4. Sealing Gaskets (PTFE / EPDM)
5. Protective Shield (Polycarbonate / Metal Casing)
6. Mounting Flanges / Screwed Ends

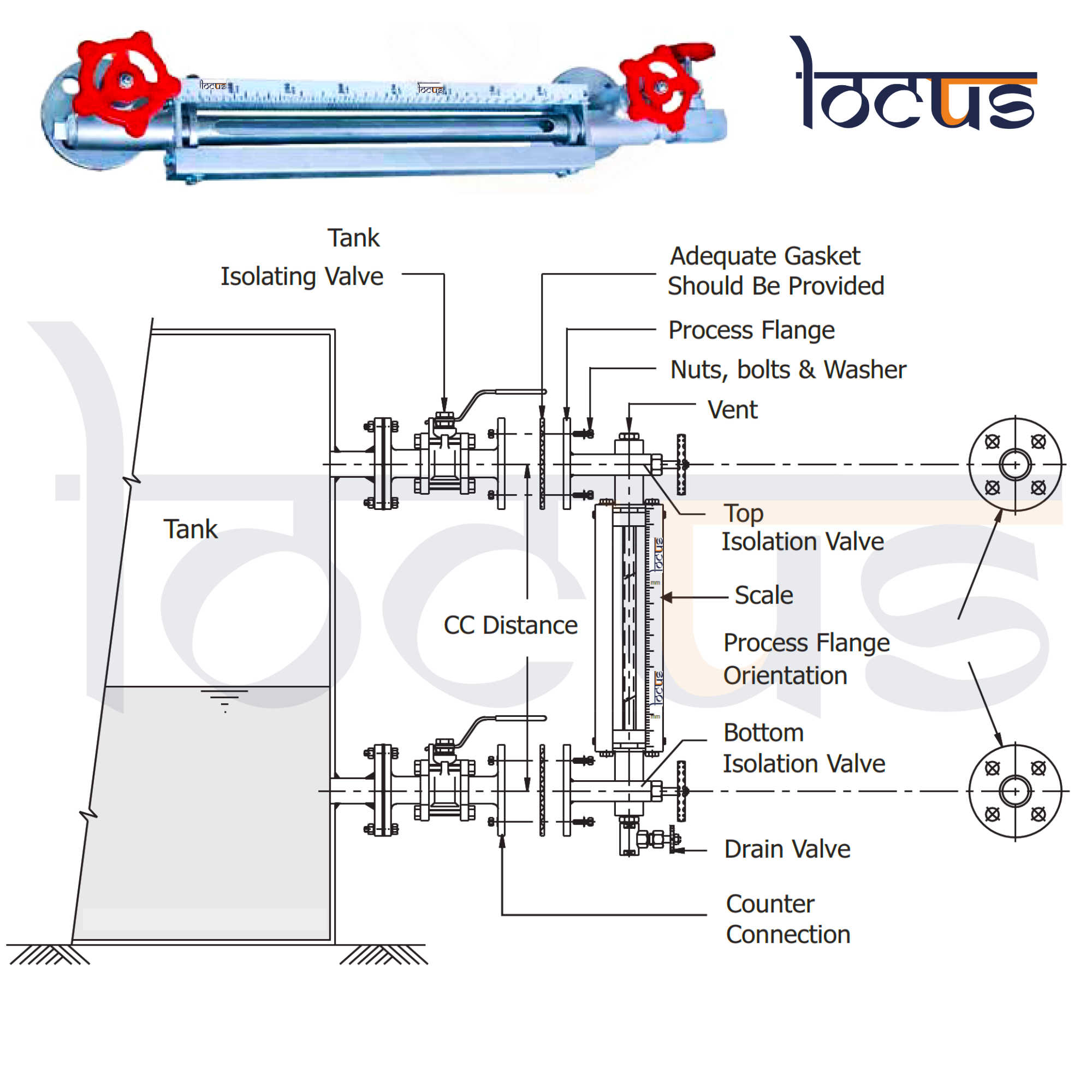

6. Installation Process

1. Prepare the Tank/Vessel: Ensure the surface is clean and suitable for mounting.
2. Fix the Mounting Brackets: Attach the gauge using the appropriate connection type (Flanged/Screwed).
3. Align the Gauge Properly: Ensure it is vertical and positioned correctly for maximum visibility.
4. Seal with PTFE Tape/Gaskets: Prevent leakage by sealing joints properly.
5. Connect the Valves: Attach the vent and drain valves to allow easy maintenance.
6. Check for Leakage: Perform a pressure test before use.

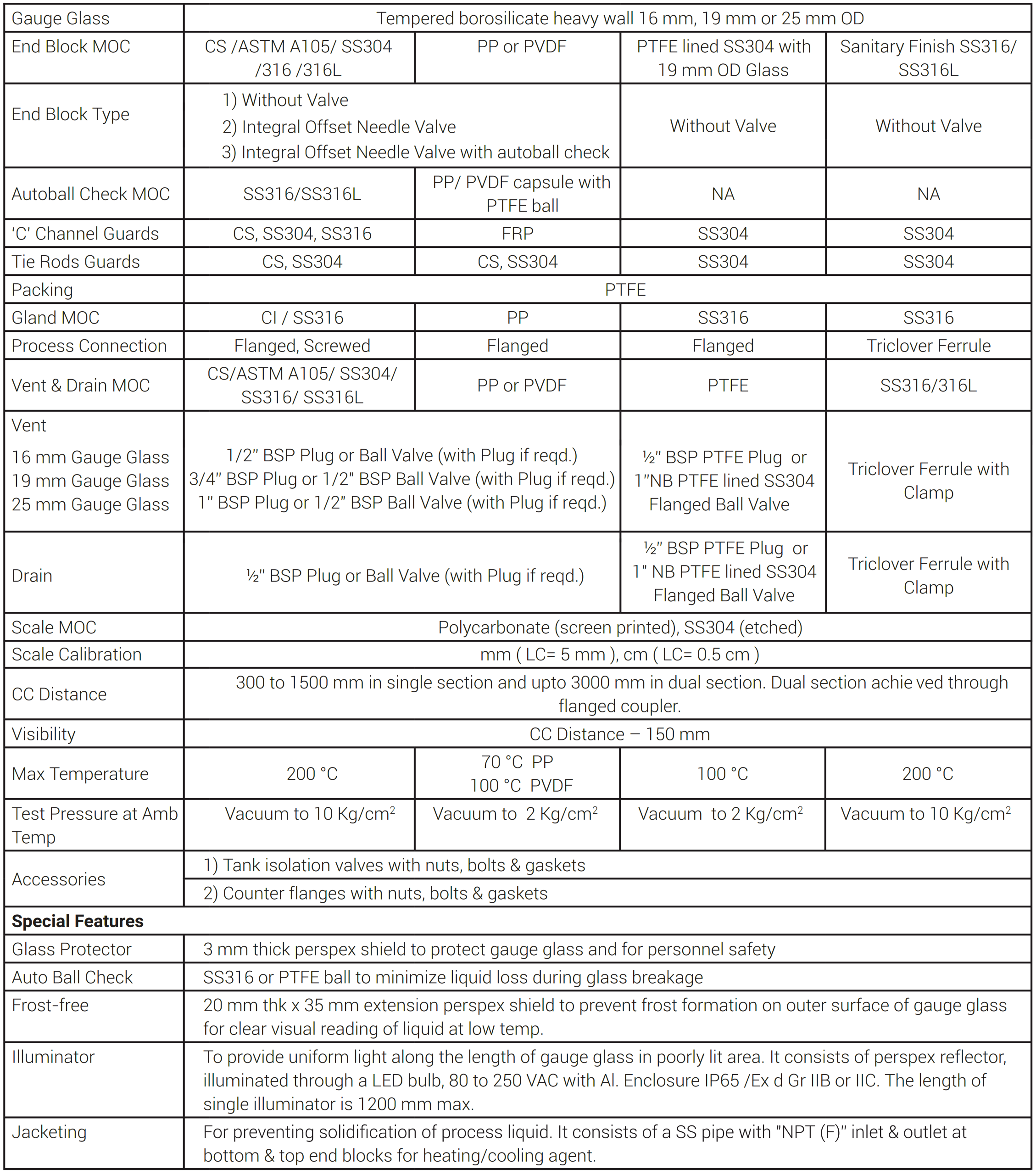

7. Technical Specification

Parameter	Specification
Material	SS 304, SS 316, Brass, Mild Steel
Glass Type	Borosilicate, Toughened
Operating Pressure	Up to 10 Bar
Temperature Range	-40°C to 250°C
Connection Type	Flanged, Screwed, Welded
Sealing Material	PTFE, Neoprene, EPDM
Gauge Protection	Polycarbonate, Metal Shield
Standard Lengths	300mm – 1500mm
Fluid Compatibility	Water, Oil, Chemicals, Acidic Solutions

8. Troubleshooting of Transparent Tubular Level Gauge

Issue	Possible Cause	Solution
Leakage at joints	Loose fittings or damaged gaskets	Tighten fittings, replace gasket
Broken glass tube	Physical impact or pressure surge	Replace with new borosilicate tube
Cloudy or dirty glass	Fluid contamination or scaling	Clean with chemical solution or replace
Inaccurate readings	Blocked connection pipes	Clean and clear blockages
Gauge not filling	Airlock in the system	Open vent valve to release trapped air

9. HS Codes

Product	HS Code
Tubular Level Indicator Gauge	9026.10.10
Borosilicate Glass Tube	7002.39.00
Rubber Seals & Gaskets	4016.93.00
Stainless Steel Mountings	7307.99.00
