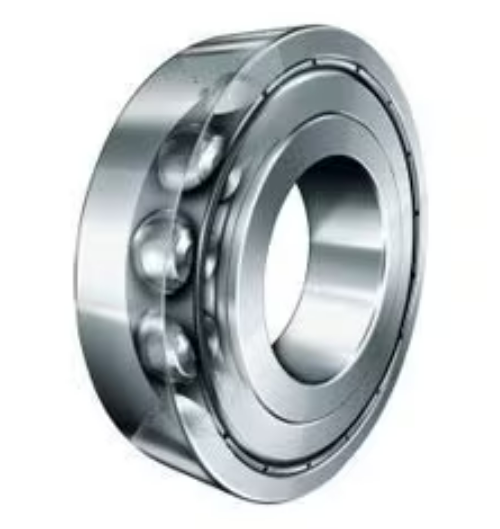

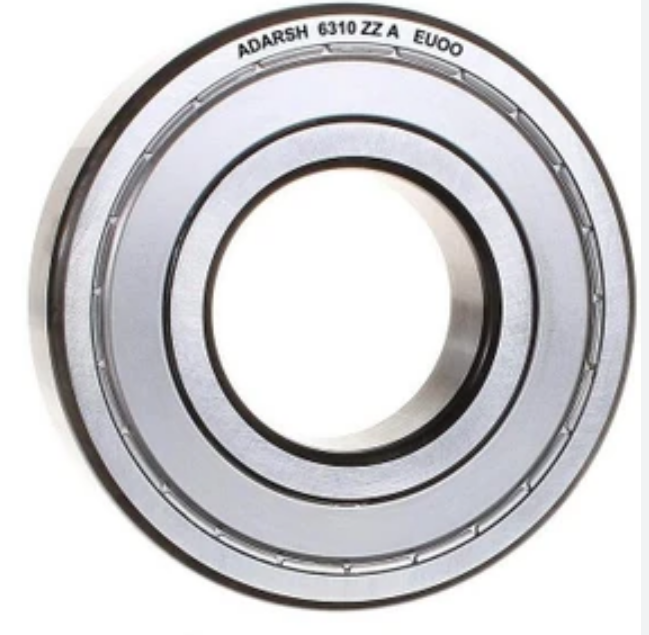

Single Row Ball Bearing with Metal Seal

LOCUS Single Row Ball Bearing with Metal Seal is designed for high performance, durability, and precision. Engineered by Adarsh Bearings Pvt. Ltd. and marketed under the LOCUS brand, this bearing features deep groove geometry and metal shields to protect from dust and contaminants. Ideal for industrial and automotive applications requiring minimal maintenance and smooth operation.

Brand: LOCUS
Manufacturer: Adarsh Bearings Pvt. Ltd.
Seal Type: Metal Shield (ZZ)
Bearing Type: Deep Groove Ball Bearing
Number of Rows: Single
Lubrication: Pre-lubricated with High-Quality Grease
Material: High Carbon Chrome Steel (AISI 52100)
Bore Diameter Range: 10 mm to 100 mm (Customizable)
Outer Diameter Range: 30 mm to 200 mm (Customizable)
Country of Origin: India
Brand Positioning: OEM / White Label / Export Quality

Description

1. Description

The LOCUS Single Row Ball Bearing with Metal Seal is designed for high performance, durability, and precision. Engineered by Adarsh Bearings Pvt. Ltd. and marketed under the LOCUS brand, this bearing features deep groove geometry and metal shields to protect from dust and contaminants. Ideal for industrial and automotive applications requiring minimal maintenance and smooth operation.

2. Specification

Bearing Type: Deep Groove
Shield Type: Double Metal Shields (ZZ)
Cage: Steel Cage
Material: AISI 52100 Chrome Steel
Lubrication: Grease filled
Clearance: C3 (Standard)
Operating Temperature: -20°C to +120°C
Dynamic Load Rating: Up to 80 kN
Static Load Rating: Up to 40 kN
RPM Limit: Up to 12,000 RPM

3. Working

The ball bearing reduces rotational friction and supports radial and axial loads using balls enclosed between an inner and outer raceway. The metal seal ensures contaminants do not enter the raceway, increasing bearing life and ensuring consistent operation.

4. Principle

Ball bearings operate on the principle of rolling contact, where friction is minimized by using spherical balls between two races. The rolling action significantly reduces friction compared to sliding contact, allowing for smoother and more efficient motion.

5. Assembly

Clean all components before assembly.
Align bearing with shaft or housing.
Press fit the bearing using a bearing press or sleeve.
Ensure metal seals are intact and undamaged.
Do not apply force on the metal shield during assembly.

6. Installation Process

Inspect housing and shaft for cleanliness.
Use a proper bearing installation tool.
Gently press the bearing onto the shaft.
Fit into housing ensuring correct seating.
Avoid hammering or misalignment.
Test for free rotation after installation.

7. Technical Specification

Tolerance Class: P0 / P6
Bore Sizes Available: 10mm to 100mm
Outer Diameter Range: 30mm to 200mm
Seal Type: ZZ (Metal Seal)
Grease: Lithium-based high-temperature grease
Noise Level: Z1V1 to Z3V3 (Export Grade)
Radial Play: Normal / C3

8. Troubleshooting

Issue	Cause	Solution
Excessive Noise	Lack of lubrication / contamination	Clean and re-lubricate
Overheating	Misalignment or overload	Check alignment and load conditions
Premature Failure	Improper installation	Use proper tools and techniques
Vibration	Imbalance or wear	Replace bearing or correct alignment

9. HS Codes

HS Code (India): 84821012
HS Description: Ball bearings, single row, with metal seal/shield
Global HS Code Reference: 8482.10.00

10. FAQ

Q1: What is the advantage of metal-sealed bearings?
A1: Metal shields protect the bearing from contaminants while maintaining lower friction compared to rubber seals.

Q2: Can these bearings be re-lubricated?
A2: No, these are pre-lubricated and non-serviceable.

Q3: Are custom sizes available?
A3: Yes, customized diameters and tolerances are available for bulk OEM orders.

Q4: What is the typical life expectancy?
A4: Depending on usage, up to 3–5 years or 10,000+ hours.
