Side Mounted Level Switches

Side Mounted Level Switches

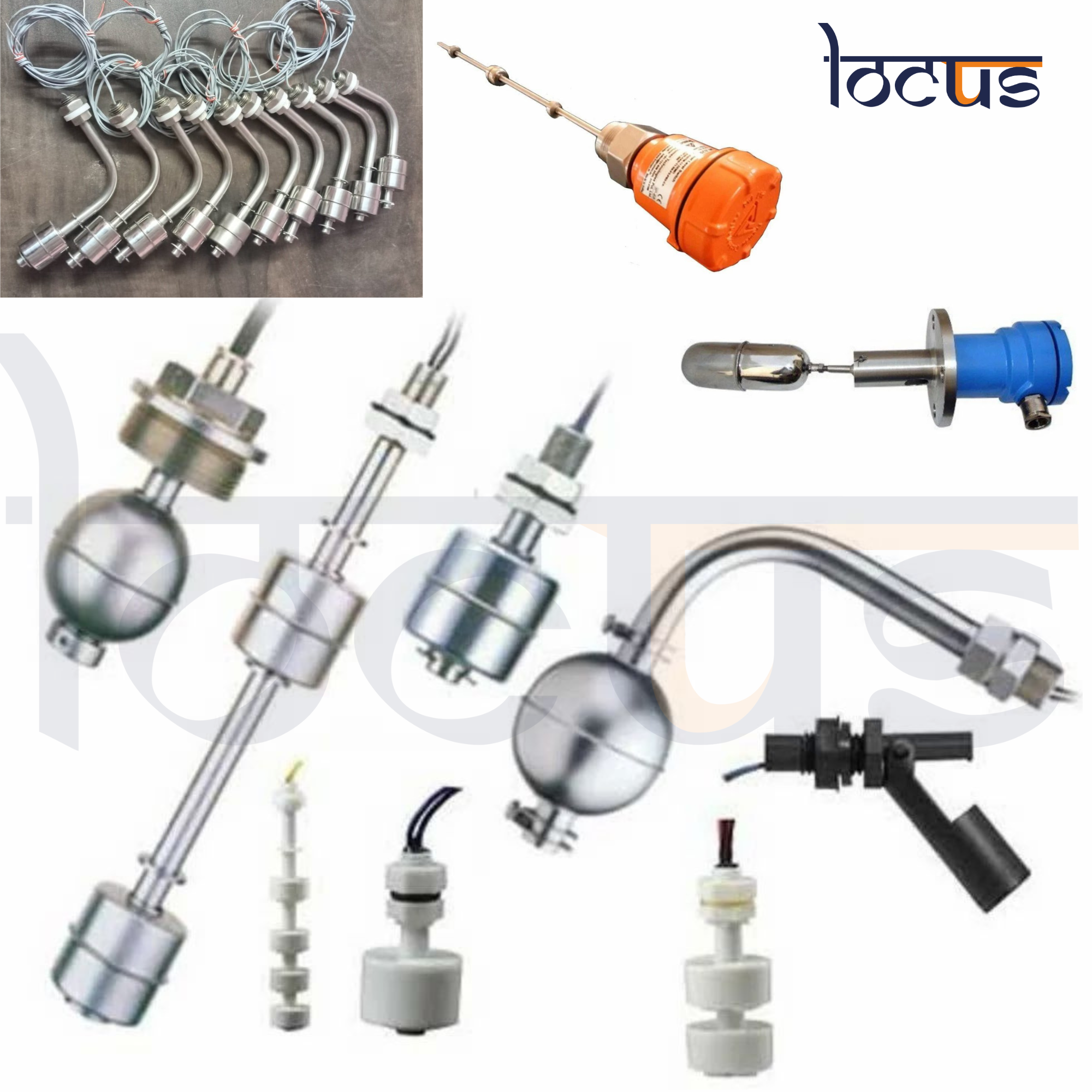

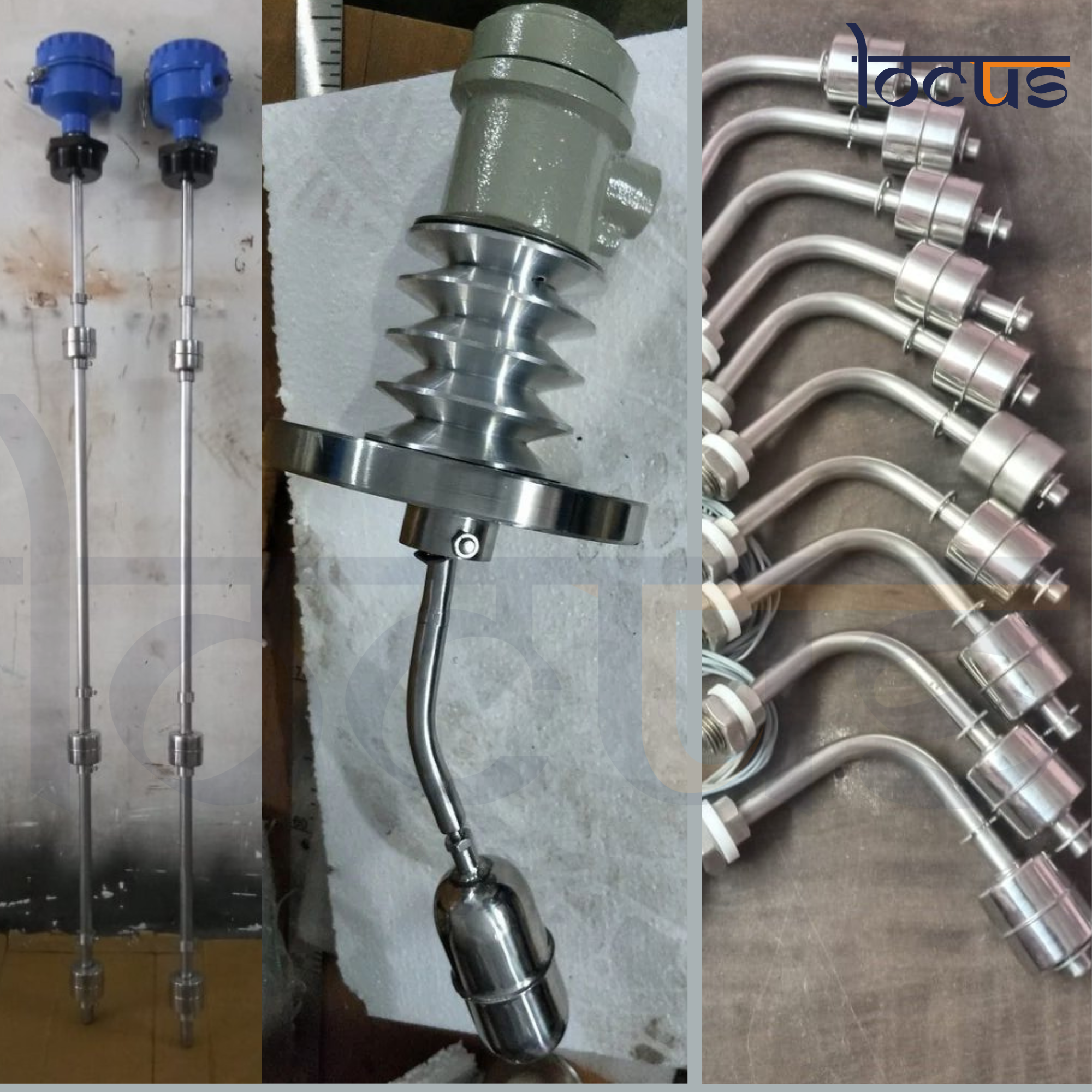

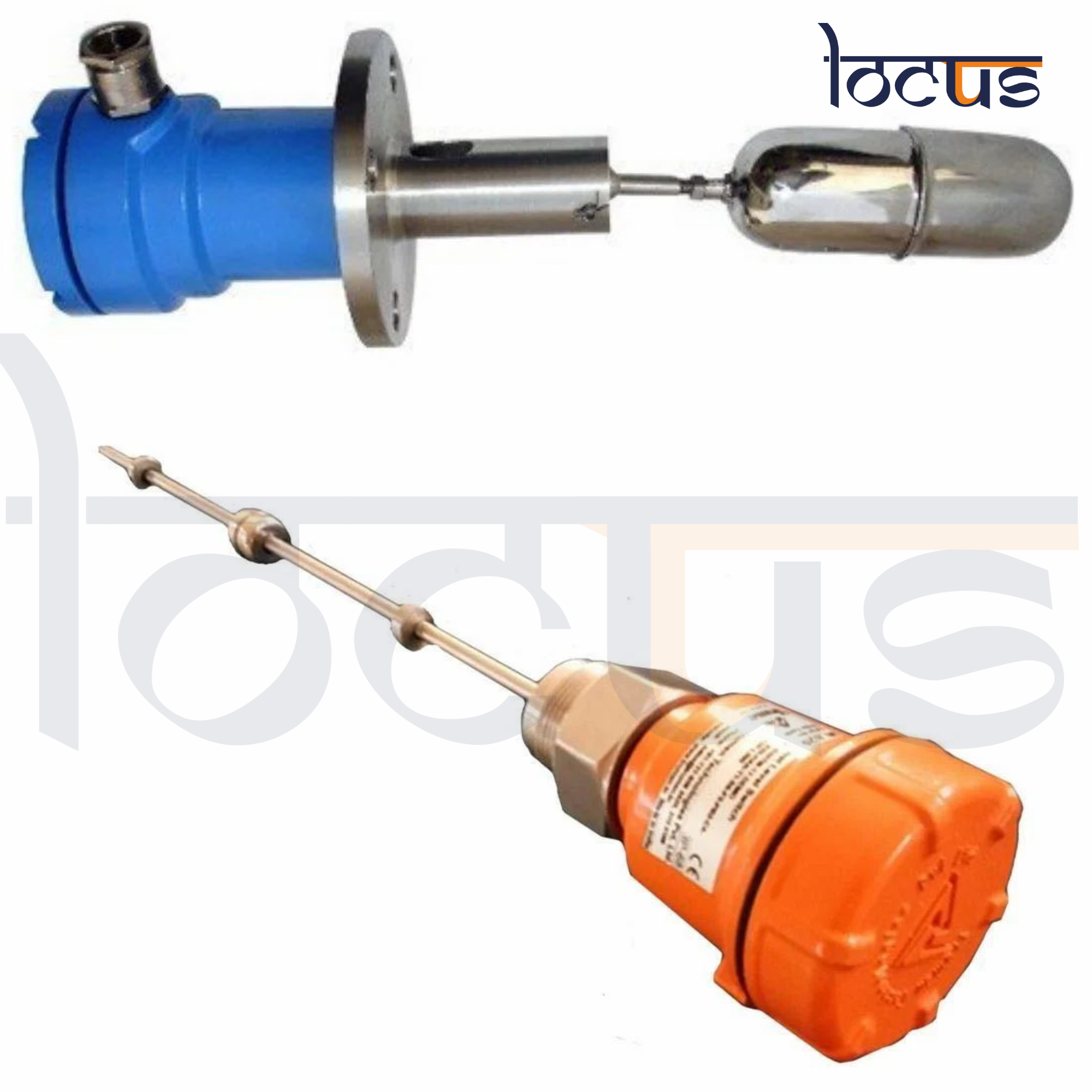

Locus Side Mounted Level Switches are compact and rugged field instruments used for point level detection in tanks, vessels, and pipelines.

  • Brand :- LOCUS
  • Model :- LS-SM-Series
  • Mounting Type :- Side Mounted
  • Material :- SS304 / SS316 / PP / PVC
  • Float Material :- SS316 / Polypropylene
  • Process Connection :- Flanged / Screwed (BSP/NPT)
  • Switch Type :- SPST / SPDT (Magnetic Reed)
  • Output :- NO / NC (custom configurable)
  • Max. Temperature :- Up to 120°C (SS), 80°C (PP)
  • Max. Pressure :- Up to 10 kg/cm²
  • Ingress Protection :- IP65 / IP67
  • Cable Entry :- PG9 / PG11 / M20 x 1.5
  • Application Media :- Water, Oil, Chemicals, Solvents, Acids

Description

1. Description

Locus Side Mounted Level Switches are compact and rugged field instruments used for point level detection in tanks, vessels, and pipelines. These switches are available in stainless steel and corrosion-resistant plastic materials for compatibility with a wide range of liquids. Using magnetic float technology, they ensure reliable operation without external power and are ideal for industrial applications.

2. Specifications

Parameter

Value

Material of Construction

SS304, SS316, PP, PVC

Mounting

Horizontal (side)

Switching Logic

Normally Open (NO) / Normally Closed (NC)

Output Type

SPST / SPDT

Electrical Rating

230V AC / 1A, 24V DC / 0.5A

Float Specific Gravity

≥ 0.6

Working Temp. Range

-10°C to 120°C (SS), up to 80°C (PP)

Pressure Range

Up to 10 bar

Enclosure Rating

IP65 / IP67

Contact Type

Magnetic Reed

3. Working

When the liquid level in the tank rises or falls, the float moves accordingly. A magnet sealed inside the float activates a reed switch housed within the stem without direct contact. The switch then opens or closes an electrical circuit to signal high/low level alarms or to start/stop pumps.

4. Principle

The switch operates on the magnetic reed principle, where a float containing a magnet moves with the liquid level. The magnetic field actuates the reed switch in a hermetically sealed enclosure, ensuring contactless and reliable operation.

5. Assembly

  1. Select mounting flange/thread as per tank design.
  2. Fit float over the stem in the correct direction (magnet side upward).
  3. Fix the switch on the tank with a gasket.
  4. Ensure wiring terminal box is sealed for ingress protection.
  5. Tighten electrical connections with proper cable glands.

6. Installation Process

  1. Choose appropriate mounting height based on alarm level.
  2. Cut off supply and depressurize the tank.
  3. Mount the switch horizontally using flange/screw thread.
  4. Connect the output wires to the control panel (check polarity).
  5. Check float movement manually before powering.
  6. Power the system and test signal output.

7. Technical Specification

Technical Parameter

Details

Sensor Type

Magnetic Reed Switch

Process Temperature

-10°C to 120°C (SS) / -10°C to 80°C (PP)

Pressure Range

Up to 10 kg/cm²

Output Signal

ON/OFF (SPST/SPDT)

Electrical Connection

Cable Gland or Terminal Box

Body Finish

Electropolished (SS), UV Resistant (PP)

Float Movement

Lateral

Protection Class

IP65 / IP67

Power Requirement

None (passive switch)

8. Troubleshooting (for Transparent Tubular Level Gauge – related reference)

Issue

Possible Cause

Solution

No level indication

Air lock or blockage

Vent the gauge or clean the tube

Leakage at connections

Loose or damaged gasket

Replace gaskets or tighten connections

Float not moving

Float jammed or fouled

Inspect and clean float and chamber

Signal not triggering

Faulty reed switch or wiring

Check continuity, replace switch if needed

Inaccurate level

Wrong mounting orientation

Reinstall switch properly (horizontal mount)

9. HS Codes

Product

HS Code (India)

Description

Side Mounted Level Switch

90328990

Automatic Regulating Instruments (Other)

10. FAQs

Q1: Can the switch be used with corrosive chemicals?
A: Yes, use PP or PVC material versions for corrosion resistance.

Q2: Is external power required for switch operation?
A: No, the magnetic reed switch works passively.

Q3: Can I use it for pressurized tanks?
A: Yes, up to 10 kg/cm². Use SS version for high-pressure applications.

Q4: How to change from NO to NC?
A: Physically rotate the switch or float assembly 180 degrees.

Q5: What is the minimum liquid specific gravity?
A: Minimum SG of 0.6 is required for float operation.

11. Applications

    • Chemical Processing Plants
    • Water Treatment Units
    • Oil & Lubricant Storage Tanks
    • Food & Beverage Industry
    • Cooling Towers and Utility Skids
    • Pharmaceutical and Biomedical Plants
    • Acidic/Chemical Sumps
    • Marine and Shipping Tanks
    • Automatic Pump Control Systems
