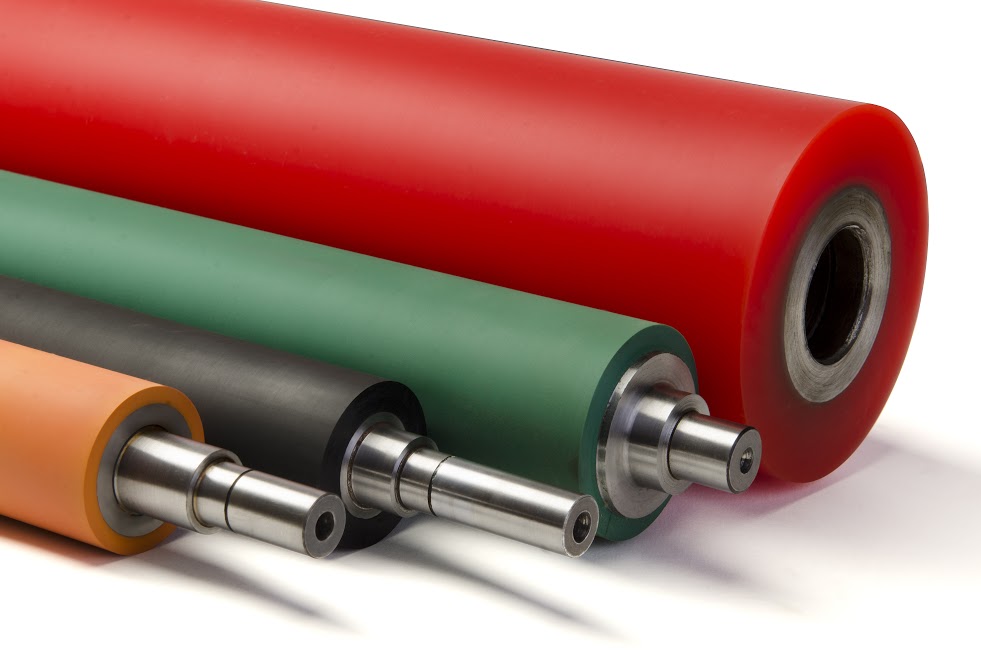

PU rollers

Locus PU Rollers are designed for high-performance applications requiring durability, load-bearing capacity, and excellent abrasion resistance.

Brand : Locus
Material : Polyurethane (PU)
Color : Standard (Custom colors available upon request)
Dimensions : Customized as per client specifications
Hardness : 90A – 95A (shore hardness)
Load Capacity : Up to 500 kg (depends on size and design)
Operating Temperature Range : -30°C to +80°C
Surface Finish : Smooth, textured or custom
Quantity per Box : 10 pcs per box (or customized per order)
Country of Origin : India
Certifications : ISO 9001:2015, RoHS, CE (Optional, depending on market)
Packaging : Export-standard packaging with cushioning material to avoid damage during transit

Description

1. Product Description

Locus PU Rollers are designed for high-performance applications requiring durability, load-bearing capacity, and excellent abrasion resistance. Manufactured under the Locus brand, these rollers are made from high-quality polyurethane, ensuring a longer service life compared to traditional rubber rollers. They are commonly used in industrial, automotive, and machinery applications.

2. Product Specifications

Specification	Details
Material	Polyurethane (PU)
Hardness	90A to 95A (shore hardness)
Load Capacity	200 kg to 500 kg
Diameter	50 mm to 500 mm (customizable)
Length	Customizable as per client needs
Temperature Resistance	-30°C to +80°C
Surface Texture	Smooth, textured, or custom design
Color	Standard (custom colors available upon request)

3. Working

The PU rollers function by transferring rotational motion from an axle or shaft to perform a variety of mechanical tasks such as conveying materials, driving systems, or performing precise movements. Their high durability and resilience make them ideal for long-term use in heavy-duty and high-load environments. The polyurethane composition provides an elastic surface that reduces noise and vibration, making them more efficient in sensitive operations.

4. Principle

The principle behind the PU roller is simple: a core (metal or plastic) is coated with polyurethane material, which offers better abrasion resistance and elasticity than traditional materials like rubber or steel. As the roller rotates, the surface interacts with the load, reducing friction and providing smooth, controlled movement. PU rollers are used for both horizontal and vertical movement systems, offering low wear-and-tear over time.

5. Assembly

The PU rollers are assembled in several steps:

1. Core Selection: Choose the appropriate metal or plastic core based on the required load capacity and application.
2. Polyurethane Coating: The core is then coated with a layer of polyurethane using a molding process that ensures the thickness and hardness meet specific customer requirements.
3. Curing Process: The rollers undergo a curing process to ensure that the polyurethane adheres properly to the core and achieves the required mechanical properties.
4. Finishing: After curing, the rollers are polished or textured as per the required specifications and are then tested for uniformity and strength.

6. Installation Process

Preparation: Clean the installation area and ensure that the roller system is free from debris and dirt.
Mounting the Roller: Insert the PU rollers into their housing, ensuring they are securely attached to the axle or shaft.
Adjustments: Depending on the application, you may need to adjust the position of the rollers to ensure correct alignment for smooth operation.
Lubrication: If necessary, apply light lubrication to the roller shafts and surrounding components to ensure easy rotation and reduce wear.
Testing: Run a short test to ensure the rollers function smoothly without unusual noise or vibration.

7. Technical Specifications

Technical Attribute	Details
Material Composition	Polyurethane with steel core (optional)
Hardness	90A – 95A (shore hardness)
Load Capacity	200 kg to 500 kg
Temperature Resistance	-30°C to +80°C
Rotational Speed	Up to 2000 RPM (depending on design)
Density	1.1 g/cm³
Tensile Strength	40 MPa

8. Troubleshooting

Issue	Possible Causes	Solutions
Excessive Noise	1. Misalignment of the roller 2. Insufficient lubrication	1. Align the rollers properly 2. Apply lubrication to the bearings and roller surface
Wear and Tear	1. Overloading 2. Inadequate material properties	1. Use the roller within its recommended load capacity 2. Choose a higher shore hardness PU if needed
Sticking / Binding	1. Debris buildup 2. Lack of maintenance	1. Clean the rollers and housing 2. Ensure regular maintenance
Vibration	1. Imbalanced roller 2. Incorrect assembly	1. Rebalance the roller 2. Ensure proper assembly and alignment

9. HS Code

HS Code for Polyurethane Rollers: 8484.10 (Machines and mechanical appliances; parts of machinery; bearings; roller bearings)
HS Code for Rubber Rollers: 4016.99 (Other rubber products)

10. Frequently Asked Questions (FAQs)

What industries can benefit from PU rollers?
- PU rollers are ideal for industries such as automotive, manufacturing, material handling, printing, and packaging, due to their durability, abrasion resistance, and reduced noise.
Can Locus PU rollers be customized?
- Yes, Locus offers customization in size, color, hardness, and surface finish according to your specific needs.
Are PU rollers suitable for high-speed applications?
- Yes, Locus PU rollers are suitable for high-speed applications, depending on the load and design specifications.
What is the lifespan of a PU roller?
- The lifespan of a PU roller depends on the working environment, load capacity, and frequency of use. On average, PU rollers can last much longer than rubber rollers.
Can I use PU rollers in extreme temperatures?
- Locus PU rollers are designed to withstand temperatures ranging from -30°C to +80°C, making them suitable for a variety of industries and environments.

11. Applications

Material Handling Systems: Used in conveyors, automated sorting machines, and production lines.
Automotive: Used in various automotive applications such as assembly lines and paint booths.
Industrial Machinery: Suitable for roller conveyors, machinery for packaging, and material transfer.
Printing and Packaging: Used for high-speed printing presses, rollers in packaging machines, etc.
Agriculture: Used in machinery for farming operations, including harvesters and tractors.

Locus Brand Manufacturing Details:
Locus manufactures all its PU Rollers with the highest standards of quality control, ensuring performance and durability across industries. The manufacturing process is ISO 9001:2015 certified, and all products undergo rigorous testing to meet global standards. Locus products are designed and produced to meet the unique requirements of our customers, ensuring tailored solutions for every application.
