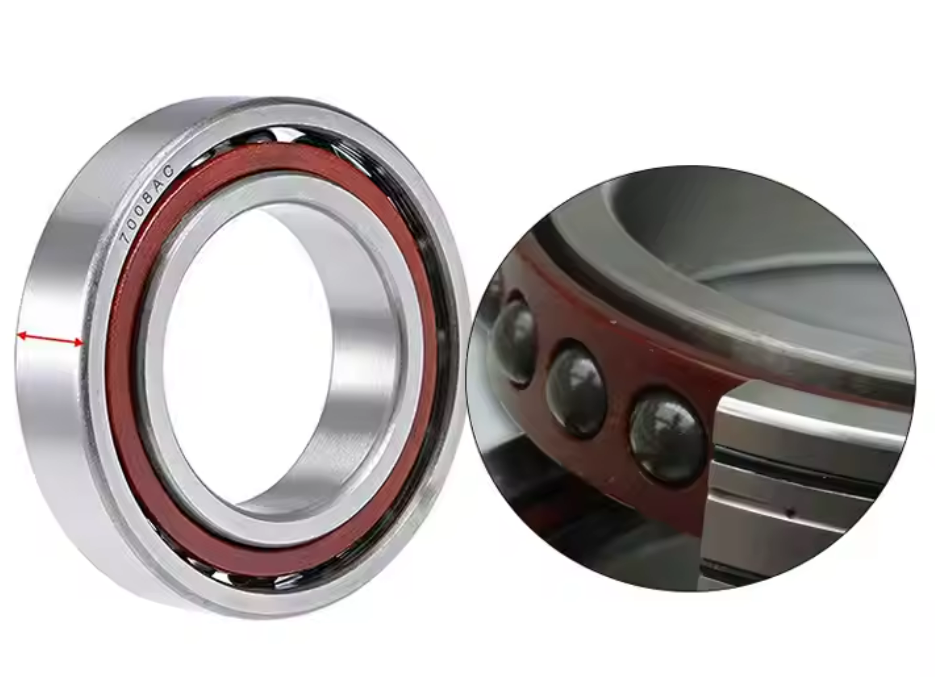

Product Name Single Row Angular Contact Ball Bearing with Fiber Cage

LOCUS™ Single Row Angular Contact Ball Bearings with Fiber Cage are engineered for high-speed, high-precision, and high-load applications. Designed with an inner and outer ring offset to manage both axial and radial loads efficiently, these bearings ensure smooth performance and excellent heat resistance. The fiber-reinforced cage offers low noise, reduced friction, and long service life.

Type: Angular Contact Ball Bearing
Brand: LOCUS™
Cage Material: High-Performance Fiber (Phenolic Resin)
Contact Angle: 15°, 25°, or 40° (Customized)
Outer Ring Material: Chrome Steel / Stainless Steel
Inner Ring Material: Chrome Steel / Stainless Steel
Lubrication: Grease / Oil (as per buyer’s need)
Sealing Options: Open / ZZ / 2RS
Standard Compliance: ISO 18, ISO 19 Series, DIN 628, ABEC 3-5-7
Manufacturer: Adarsh Bearings Pvt. Ltd.
Marketed By: Locus International Exports
Country of Origin: India

Description

1. Product Description

2. Specifications

Parameter	Value
Bore Diameter	10 mm – 120 mm (custom sizes available)
Outer Diameter	30 mm – 200 mm
Width	Varies by size & application
Contact Angle	15° / 25° / 40°
Dynamic Load Rating	Up to 150 kN (varies by size)
Static Load Rating	Up to 100 kN (varies by size)
Speed Rating	Up to 20,000 RPM
Temperature Range	-30°C to 180°C
Cage Type	Fiber / Phenolic Resin

3. Working

This bearing supports axial and radial loads simultaneously due to its angular contact design. The load line does not pass through the center, enabling unidirectional axial load capacity. For combined load-bearing or higher axial loads, paired installations are recommended.

4. Principle

Angular Contact Ball Bearings operate with contact angles that allow force transmission from one ring to another at an angle to the radial axis. This design enables better load distribution, higher speed capacity, and precise motion control.

5. Assembly

Clean shaft and housing thoroughly.
Slide the bearing onto the shaft using a press-fit method.
Ensure correct orientation (contact angle direction).
Secure with snap rings or locking devices.
Lubricate as required before final assembly.

6. Installation Process

Use proper mounting tools (e.g., induction heater, bearing press).
Maintain the alignment during installation.
Avoid hammering or external stress on the bearing.
Confirm clearance settings if using paired bearings.
Test rotation manually after fitting.

7. Technical Specification

Characteristic	Standard / Range
Contact Angle	15°, 25°, 40°
Internal Clearance	C2, C3, C4, C5
Precision Class	ABEC 3, 5, 7 / P6, P5, P4
Material Grade	AISI 52100 (Chrome Steel) / SS 440C
Cage Type	Fiber Reinforced (Phenolic Resin)
Shield / Seal Type	Open / Metal Shields / Rubber Seals
Dynamic Load Rating	As per ISO 281
Life Calculation Standard	ISO 281 / L10 Life

8. Troubleshooting

Issue	Possible Cause	Solution
Bearing Overheating	Improper lubrication	Use correct lubricant
Excessive Noise	Contamination / Misalignment	Clean & re-align
Vibration	Shaft imbalance or cage damage	Inspect shaft and cage integrity
Reduced Speed	Seal friction / cage wear	Replace seals or inspect cage
Early Failure	Overloading / poor installation	Review load specs and installation

9. HS Code

Product	HS Code (India)	Description
Single Row Angular Contact Ball Bearing	84821012	Ball bearings (angular contact type, single row)

10. FAQs

Q1. Why use a fiber cage instead of steel or brass?
A1. Fiber cages reduce weight, improve thermal resistance, lower noise, and offer better high-speed performance.

Q2. Can these bearings be used in paired arrangements?
A2. Yes, they are ideal for duplex (DB, DF, DT) or triplex configurations for higher axial loads.

Q3. What lubrication is recommended?
A3. Lithium-based grease or synthetic oil depending on speed and temperature.

Q4. Are these bearings available with seals?
A4. Yes. Options: Open, ZZ (metal shield), or 2RS (rubber seal).
