Metal Tube Magnetic Rotameter

Metal Tube Magnetic Rotameter

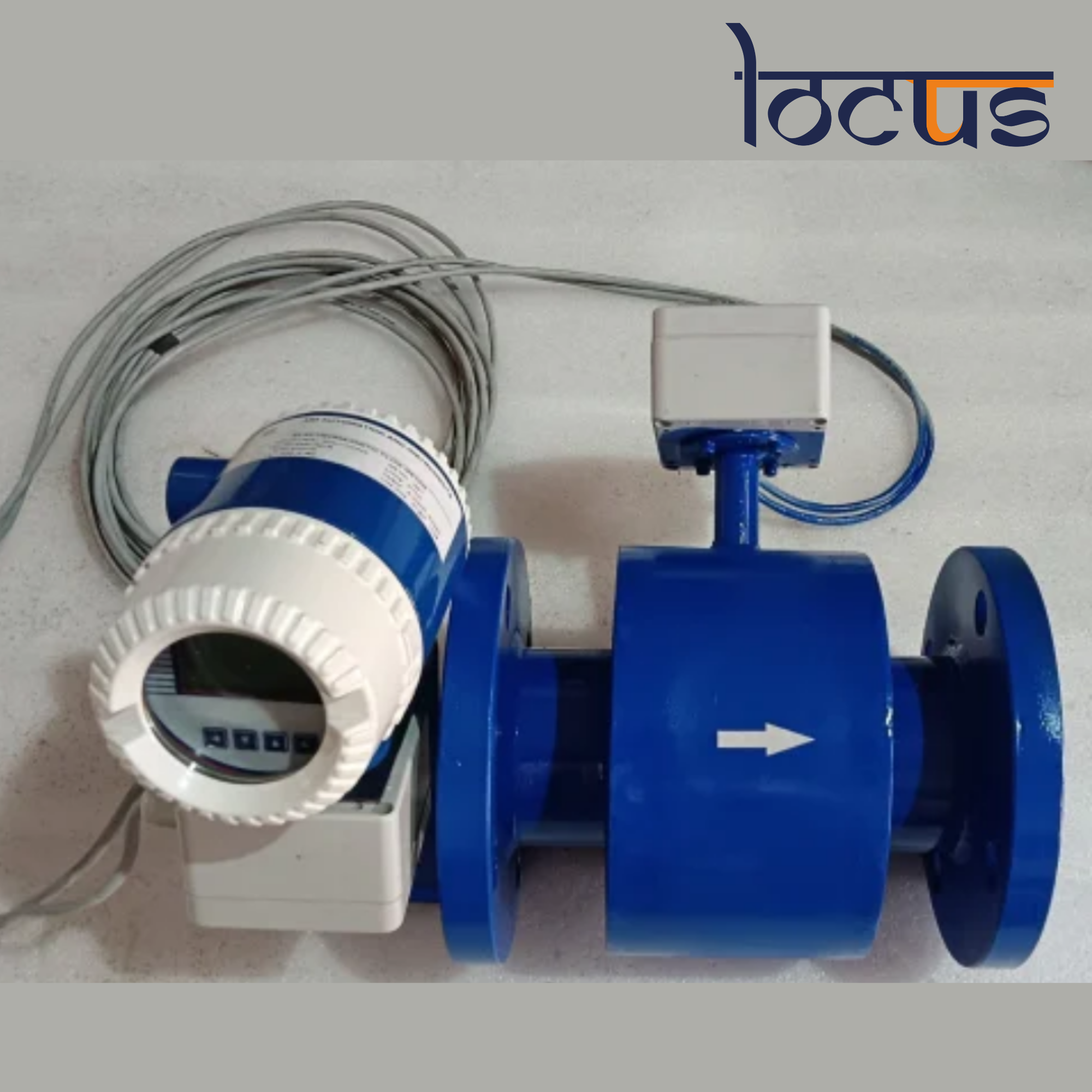

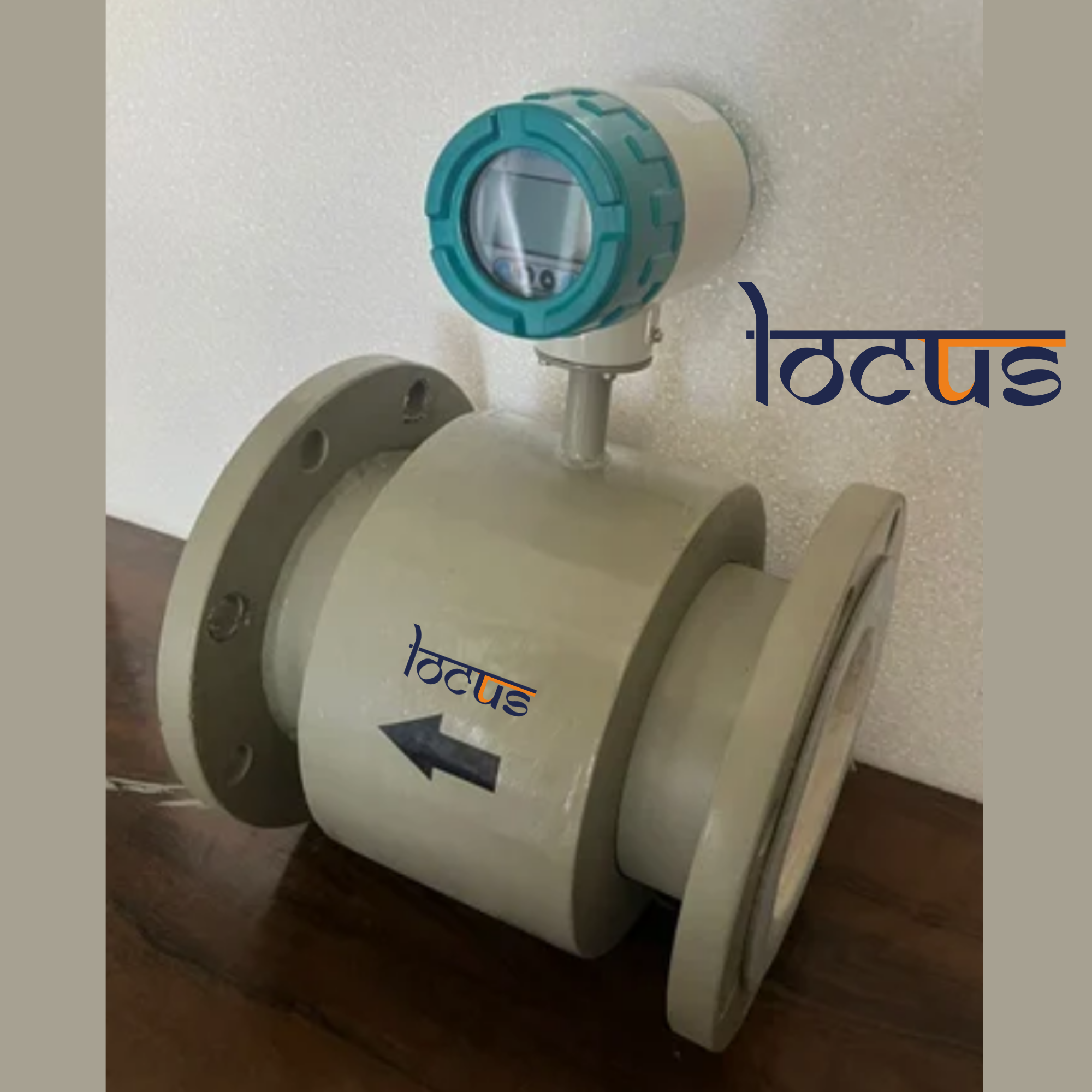

Locus Electromagnetic Flow Meter (EMFM) is a high-precision flow measurement device designed for measuring the flow rate of conductive liquids. It operates on Faraday’s Law of Electromagnetic Induction, ensuring accurate, repeatable, and stable readings. Locus Electromagnetic Flow Meter (EMFM) is a high-precision flow measurement device designed for measuring the flow rate of conductive liquids. It operates on Faraday’s Law of Electromagnetic Induction, ensuring accurate, repeatable, and stable readings.

Brand :- Locus
Model :- Locus-EMFM-100
Material :- Stainless Steel, PTFE Lining
Flow Measurement Range :- 0.1 m/s to 10 m/s
Accuracy :- ±0.5%
Power Supply :- 85-265V AC / 24V DC
Output Signal :- 4-20mA, Pulse, RS485 (Modbus)
Ingress Protection :- IP65 / IP68
Process Connection :- Flanged / Threaded
Operating Temperature :- -25°C to 80°C
Applications :- Water, Wastewater, Chemicals

Description

1. Product Description

The Locus Electromagnetic Flow Meter (EMFM) is a high-precision flow measurement device designed for measuring the flow rate of conductive liquids. It operates on Faraday’s Law of Electromagnetic Induction, ensuring accurate, repeatable, and stable readings. It is widely used in water treatment, chemical industries, food processing, and pharmaceuticals.

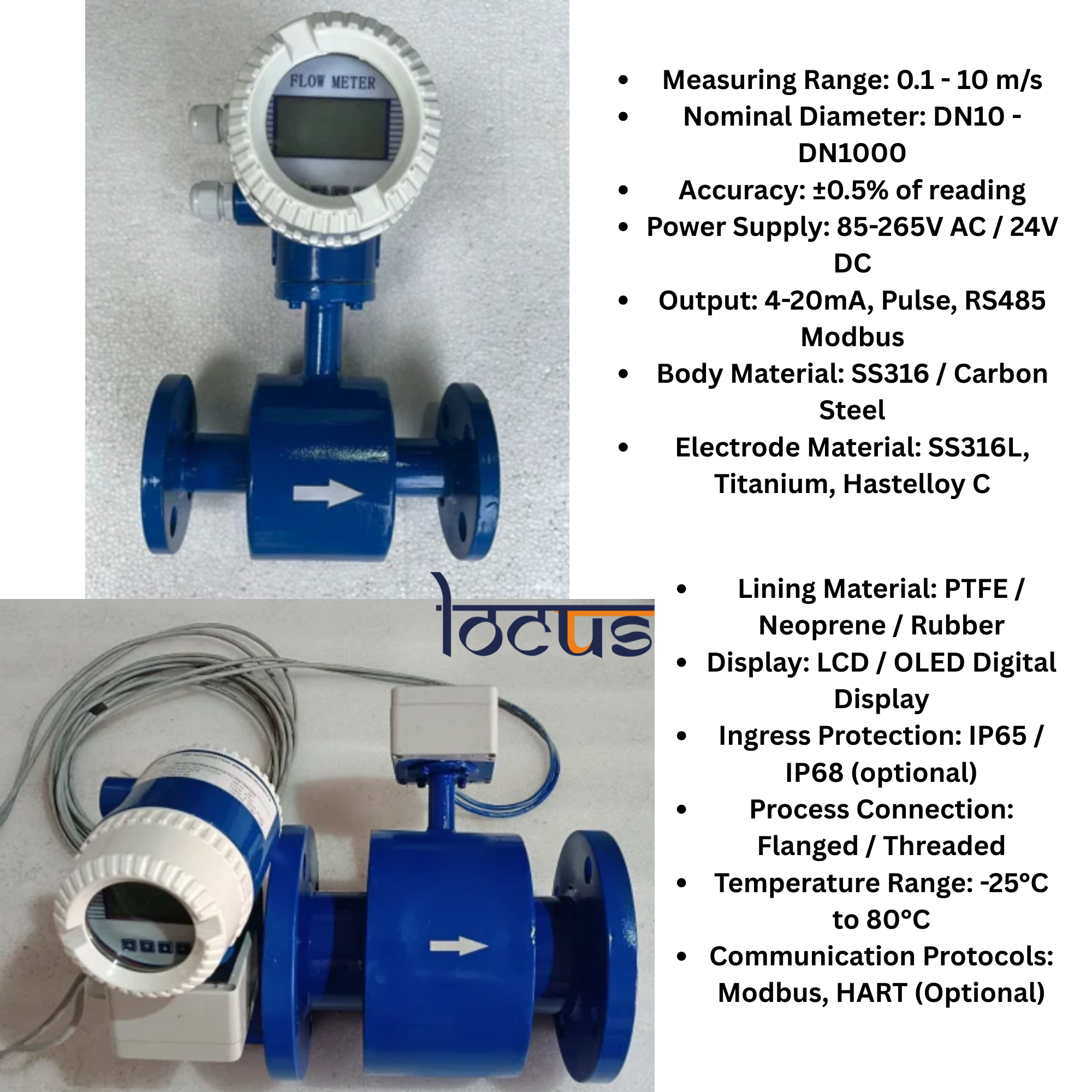

2. Product Specifications

Measuring Range: 0.1 – 10 m/s
Nominal Diameter: DN10 – DN1000
Accuracy: ±0.5% of reading
Power Supply: 85-265V AC / 24V DC
Output: 4-20mA, Pulse, RS485 Modbus
Body Material: SS316 / Carbon Steel
Electrode Material: SS316L, Titanium, Hastelloy C
Lining Material: PTFE / Neoprene / Rubber
Display: LCD / OLED Digital Display
Ingress Protection: IP65 / IP68 (optional)
Process Connection: Flanged / Threaded
Temperature Range: -25°C to 80°C
Communication Protocols: Modbus, HART (Optional)

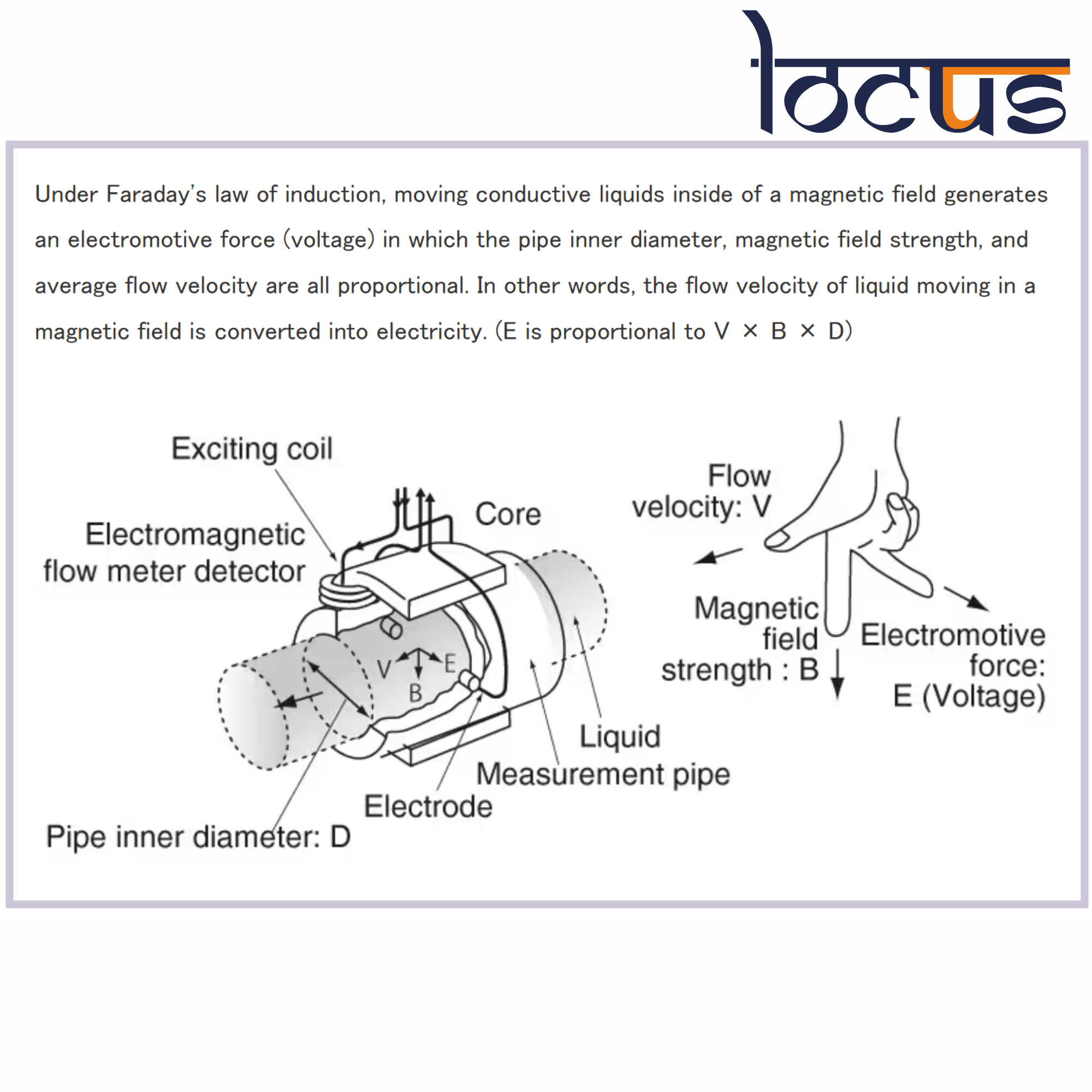

3. Working Principle

The electromagnetic flow meter operates based on Faraday’s Law of Electromagnetic Induction. When a conductive liquid flows through a magnetic field, it induces a voltage proportional to the flow velocity. Electrodes inside the flow tube detect this voltage, which is then processed by the transmitter to determine the flow rate.

Formula: E=B×V×DE = B \times V \times D Where:

- E = Induced Voltage
- B = Magnetic Field Strength
- V = Fluid Velocity
- D = Inner Diameter of Pipe

4. Assembly Process

Sensor Housing: Fabricated using SS316 or carbon steel.
Electrode Placement: Positioned at strategic points for optimal detection.
Lining Installation: PTFE or rubber lining for chemical resistance.
Electronic Unit Mounting: Processor and transmitter integrated.
Display Unit Fixing: LCD/OLED display with user interface.

5. Installation Process

Ensure correct pipe alignment with minimal turbulence.
Install in a full pipe to avoid air gaps.
Maintain minimum straight pipe length before and after the meter:
- Upstream: 10x diameter
- Downstream: 5x diameter
Properly ground the meter for accurate readings.
Avoid installation near strong electromagnetic fields.
Use flange gaskets to prevent leaks.

6. Technical Specification

Parameter	Specification
Flow Measurement	0.1 – 10 m/s
Accuracy	±0.5% of reading
Power Supply	85-265V AC / 24V DC
Output Signal	4-20mA, Pulse, RS485 Modbus
Protection Rating	IP65 / IP68
Material Options	SS316, Carbon Steel
Electrode Material	SS316L, Titanium, Hastelloy C
Lining Material	PTFE, Neoprene, Rubber
Display Type	LCD / OLED

7. Troubleshooting of Transparent Tubular Level Gauge

Issue	Possible Cause	Solution
No liquid level indication	Blocked tube or faulty installation	Clean the tube, check alignment
Erratic readings	Air bubbles in the tube	Vent out air bubbles
Leakage	Loose fittings or gasket failure	Tighten or replace gasket
Tube discoloration	Chemical reaction with fluid	Use compatible tube material
Low visibility	Dirt accumulation	Regular cleaning required

8. HS Code for Electromagnetic Flow Meter

Product	HS Code
Electromagnetic Flow Meter	90261010
Transparent Tubular Level Gauge	90261020

9. Why Choose Locus Electromagnetic Flow Meter?

✅ High accuracy & repeatability
✅ Robust construction with premium materials
✅ Wide compatibility with industrial applications
✅ Advanced communication protocols (Modbus, HART)
✅ Available in multiple configurations for varied requirements

For more information, please contact Locus International Exports.
