Float level Gauge

Float level Gauge

Float and Board Type Level Indicator by Locus is designed for precise liquid level measurement in large storage tanks, reservoirs, and industrial vessels.

Brand Name :- Locus
Product Name :- Float and Board Type Level Indicator
Application :- Liquid Level Measurement in Tanks & Vessels
Material :- SS 304/SS 316, Aluminum, PP, MS with Epoxy Coating
Mounting :- Top or Side Mounted
Measuring Range :- Up to 20 meters (Customizable)
Float Material :- SS 316 / PP / PTFE-Coated SS
Indicator Type :- Scale with Moving Board & Indicator
Fluid Compatibility :- Water, Oil, Chemicals, Acids, etc.
Process Connection :- Flanged, Screwed, or Customized
Temperature Range :- -20°C to +150°C
Pressure Range :- Atmospheric to 10 Bar
Accuracy :- ± 5 mm
Certifications :- ISO 9001:2015, CE Marking (Available on Request)
HS Code :- 90261010

Description

1. Product Description

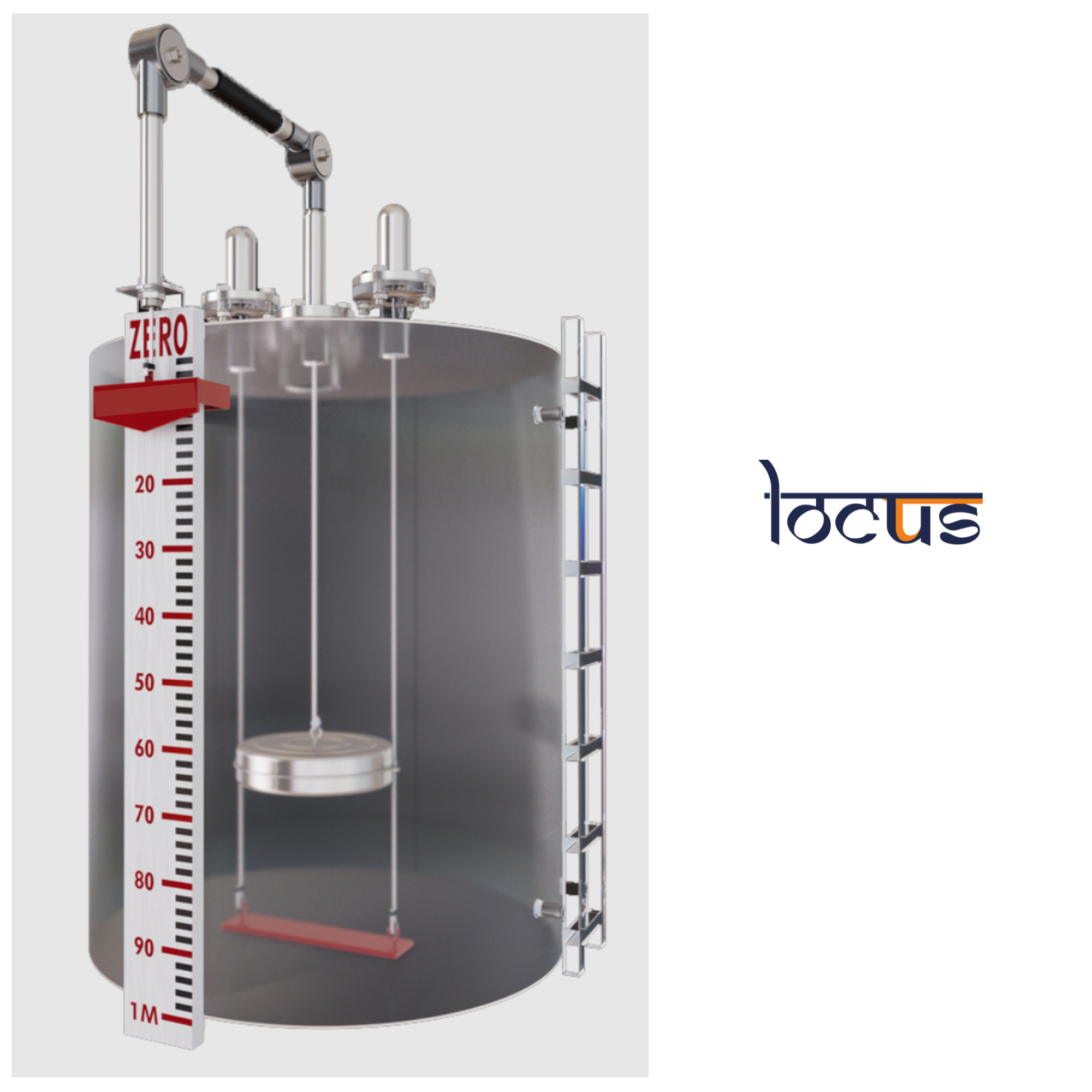

The Float and Board Type Level Indicator by Locus is designed for precise liquid level measurement in large storage tanks, reservoirs, and industrial vessels. The system consists of a float, which rests on the liquid surface, connected to a counterweight-driven indicator that moves along a graduated scale. This provides a continuous and real-time reading of the liquid level.

2. Specification

Measuring Range: 1m to 20m (custom sizes available)
Float Material: Stainless Steel (SS 316), Polypropylene (PP), PTFE Coated SS
Indicator Type: Moving board with counterweight
Mounting Type: Side or Top Mounted
Fluid Compatibility: Water, Chemicals, Oils, Acids, Industrial Liquids
Temperature Range: -20°C to +150°C
Pressure Range: Up to 10 Bar
Scale Material: Aluminum / SS / PVC
Process Connection: Flanged / Screwed
Graduation Units: mm / cm / inch
Accuracy: ± 5 mm

3. Working Principle

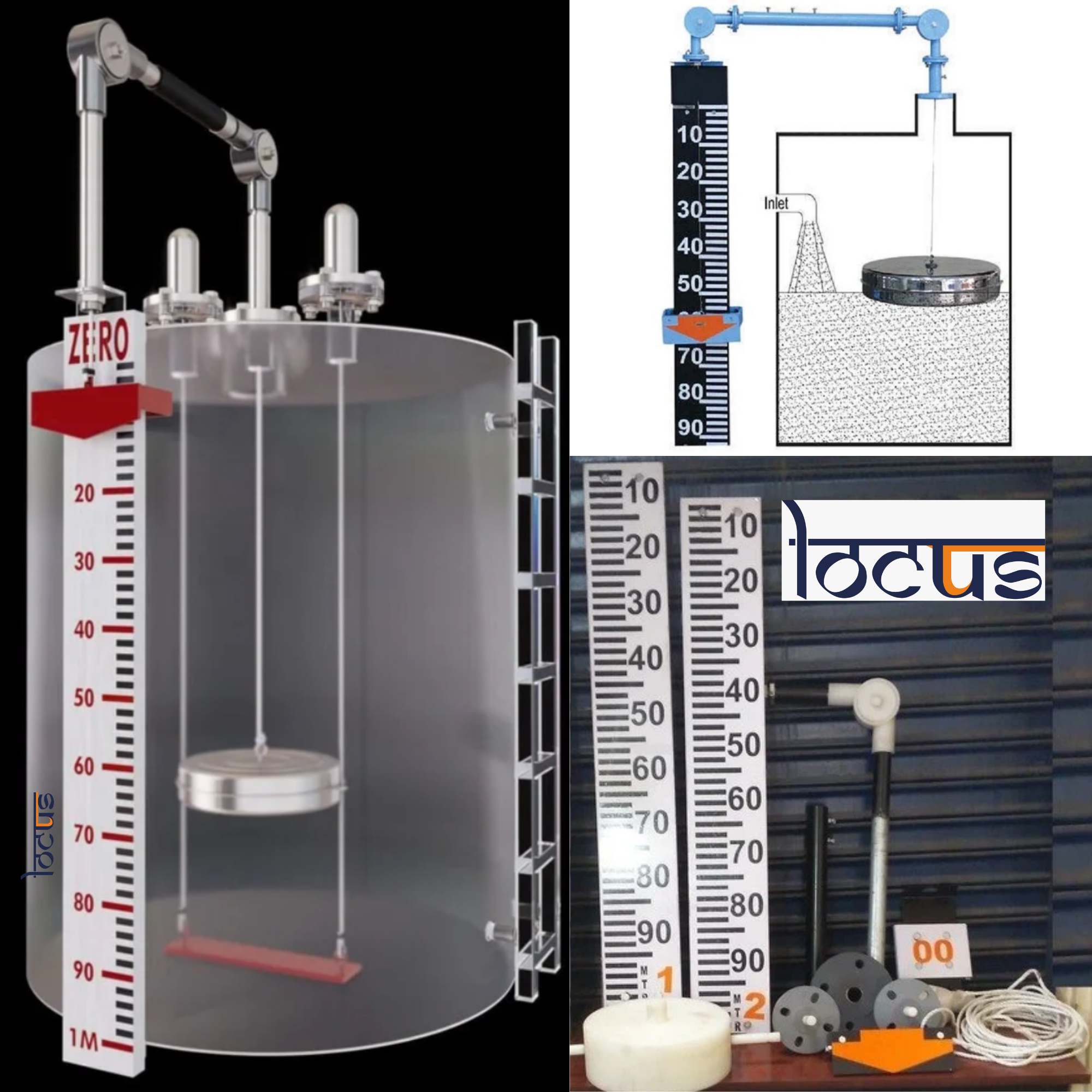

The Float and Board Type Level Indicator works on the principle of buoyancy. The float, which is immersed in the liquid, moves up and down as the liquid level changes. A wire rope/pulley mechanism connects the float to the counterweight-driven indicator. The indicator moves along a calibrated scale, providing a direct visual reading of the liquid level inside the tank.

4. Assembly & Components

Float: Moves with liquid level
Pulley System: Guides the float movement
Wire Rope: Connects the float to the counterweight
Counterweight: Balances the float movement
Indicator Board: Shows real-time liquid level reading
Support Brackets: Holds the indicator and scale in place

5. Installation Process

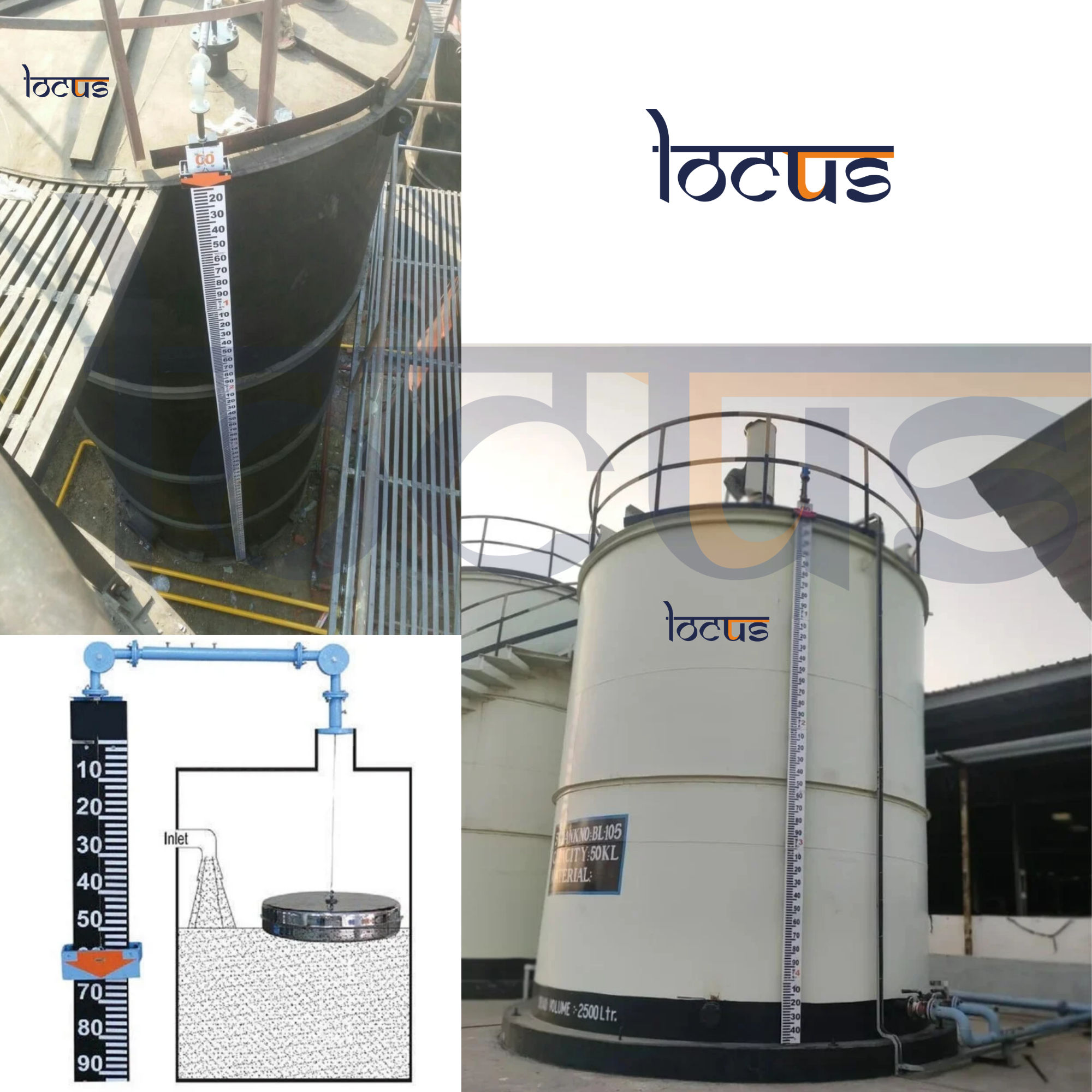

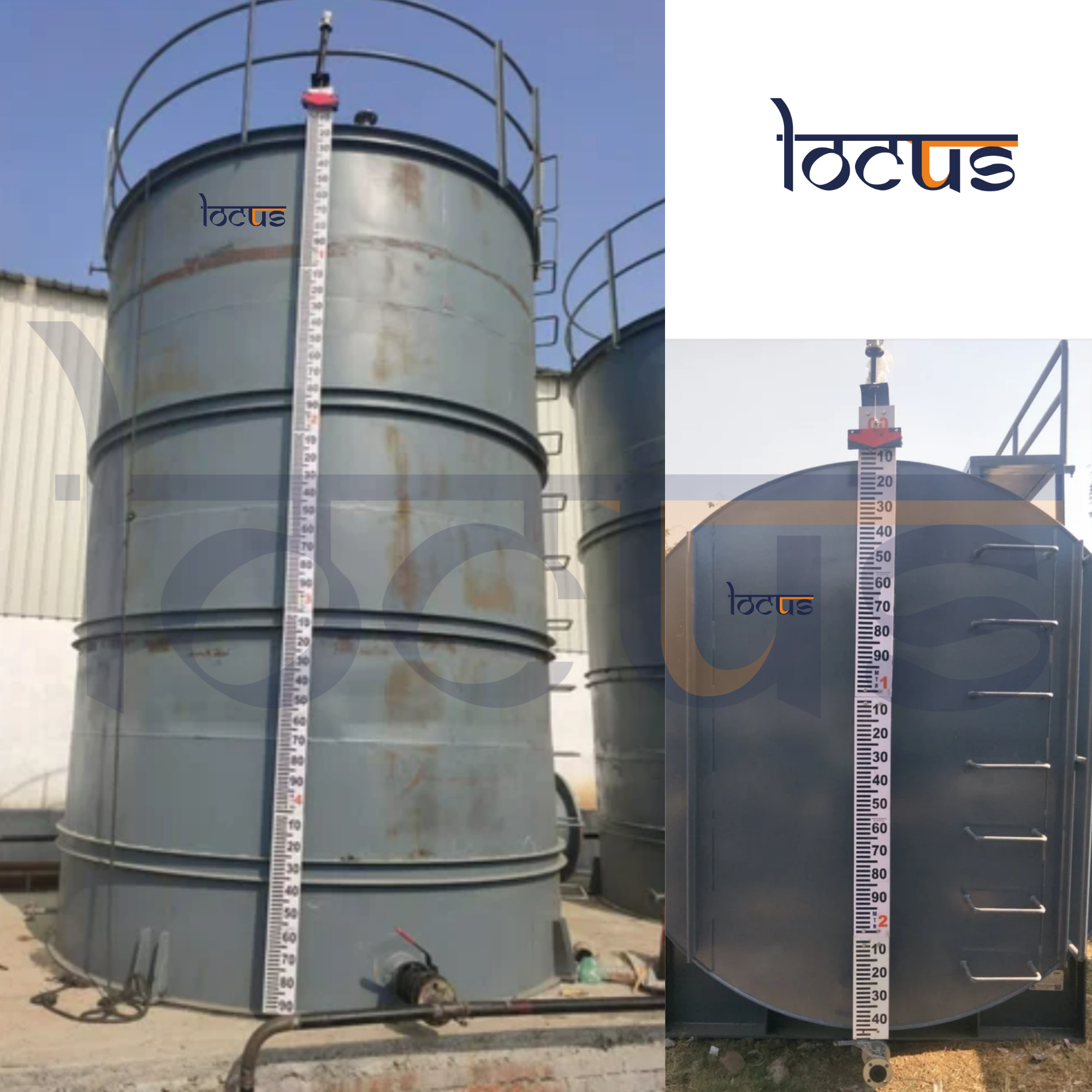

Mount the Indicator Scale securely on the tank body.
Install the Float inside the tank, ensuring free movement.
Connect the Wire Rope between the float and counterweight.
Adjust the Indicator on the scale as per liquid level.
Ensure Pulley System is Free of Obstructions.
Calibrate the Indicator by adding test liquid levels.
Check for Smooth Movement of float and board.

6. Technical Specifications

Process Connection: Flanged / Screwed
Float Size: Customizable as per tank dimensions
Scale Material: Aluminum, SS 304/316, PVC
Mounting Options: Side or Top Mounted
Tank Height Compatibility: Up to 20 meters
Optional Accessories: Magnetic Switches, Transmitters for Remote Monitoring

7. Troubleshooting of Transparent Tubular Level Gauge

Issue	Possible Cause	Solution
No level indication	Float stuck due to dirt buildup	Clean float and guide pipes
Indicator movement is erratic	Pulley system is obstructed	Check and remove obstructions
Scale reading incorrect	Calibration issue	Recalibrate with reference level
Float not moving	Wire rope jammed	Check wire rope alignment
Leakage in connections	Loose flanges/screws	Tighten connections and apply sealant

8. HS Codes for Export

Float and Board Type Level Indicator: 90261010 (Instruments for measuring liquid levels)
Transparent Tubular Level Gauge: 90261090 (Other liquid level measu
Spare Parts for Level Indicators: 90329000 (Parts & Accessories for measuring instruments)

9. Why Choose LOCUS?

✅ High-Quality Stainless Steel & PP Float Options
✅ ISO 9001:2015 & CE Certified for Global Export
✅ Customizable Designs for Industrial Applications
✅ Competitive Pricing & Reliable Performance
✅ Available with Magnetic Switches & Remote Transmitters
